BT-PON 4 ميناء Epon Olt رخيصة الألياف البصرية الصغيرة Epon Gpon Epon Olt سعر Ftth البسيطة Olt متوافق مع Bdcom Zte هواوي

FOB مرجع الأسعار:الحصول علي أحدث السعر
٢٥٩٫٠٠ US$ - ٣٣٤٫٠٠ US$ / مجموعة | 1.0 مجموعة / مجموعات (مين. النظام)
Lead Time:
الكمية( مجموعات) 1 - 50 51 - 300 >300
الوقت المقدر (بالأيام) 3 7 قابل للتفاوض
التخصيص:
Customized logo (Min. Order: 100 مجموعات)
تقرير النشاط المشبوه
نظرة عامة
تفاصيل سريعة
مكان المنشأ:
Guangdong, China
اسم العلامة التجارية:
BT-PON
رقم الموديل:
BT-P6104H
نوع:
OLT
أحادية النمط الألياف:
OLT GPON EPON
متعددة وضع الألياف:
OLT XGPON
لا. من الألياف:
FTTH OLT
استخدام:
FTTX
تطبيق:
FTTH FTTX
Power Input:
30W/60W
الضمان الوقت:
1YEAR
ماكس قدرة:
Fiber Optic Small Epon Gpon Gepon Olt
Product name:
BT-P6104H
Type:
mini 4 port
Color:
Blue
Transmission speed:
1.25g
Dimensions:
440*280*44mm
Power:
220 V AC
Power consumption:
30W
Distance:
20km
Weight:
4.2kg
Support OEM OR NOT:
support OEM
قدرة العرض
قدرة العرض:
300 Set/Sets per Week
التعبئة والتغليف والتوصيل
تفاصيل التعبئة والتغليف
1 set/box
ميناء
shenzhen
مثال للصورة:
package-img
package-img
Lead Time :
الكمية(Sets) 1 - 50 51 - 300 >300
الوقت المقدر (بالأيام) 3 7 من المقرر التفاوض فيه

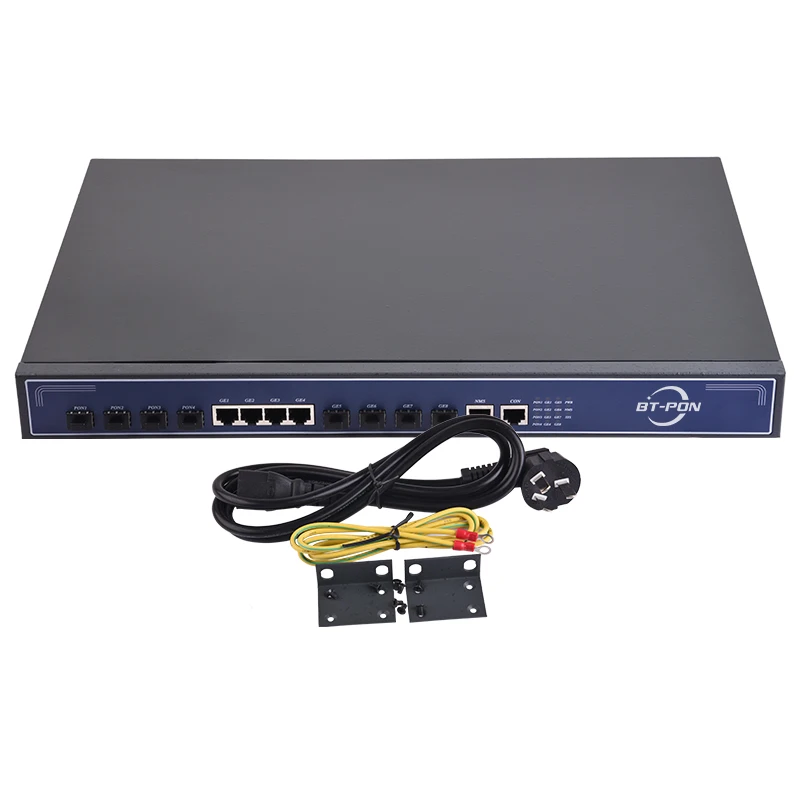

BT-PON 4 port Epon Olt Cheap Fiber Optic Small Epon Gpon Gepon Olt Price Ftth Mini Olt Compatible with Bdcom Zte Huawei
Product Description

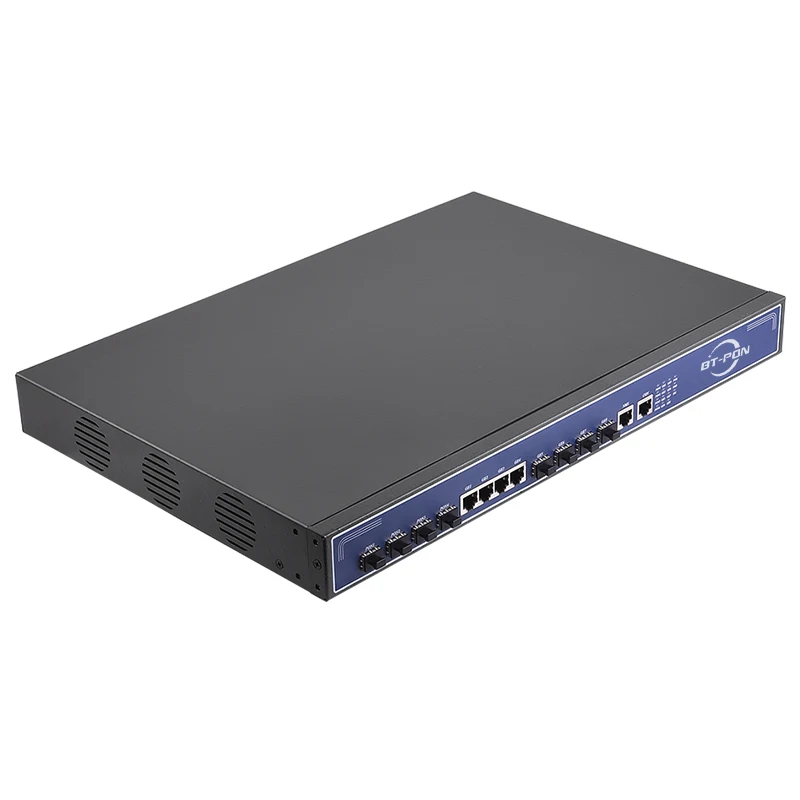

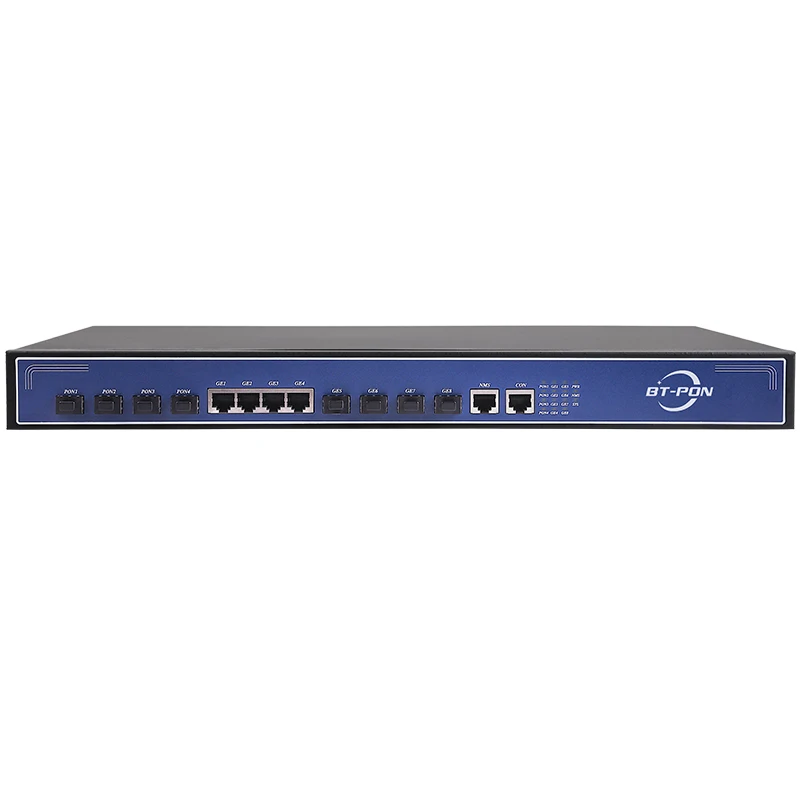

BT-P6104H EPON OLT is a 1U standard rack-mounted equipment complying with IEEE802.3ah, YD / T 1475-2006 and CTC 2.0、2.1 and 3.0 .It has flexible, easy to deploy, small size, high performance and other characteristics. The product is particularly suitable for residential broadband fiber access (FTTx), telephone and television "triple play", the power consumption information collection, video surveillance, networking, private network applications and other applications.

- Supply 4 PON Port - Supply 4 pcs RJ45 Uplink Port - Supply 4 SFP slots(Combo) - Supporting 256 ONUs under 1:64 splitter ratio. - Supporting various types of management mode, such as out-band, in-band, CLI /WEB and EMS based on development interface. - Typical Power 50W

Product Features

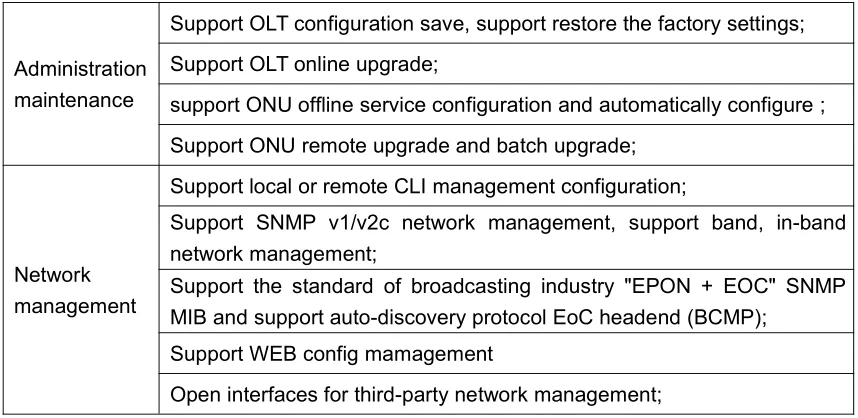

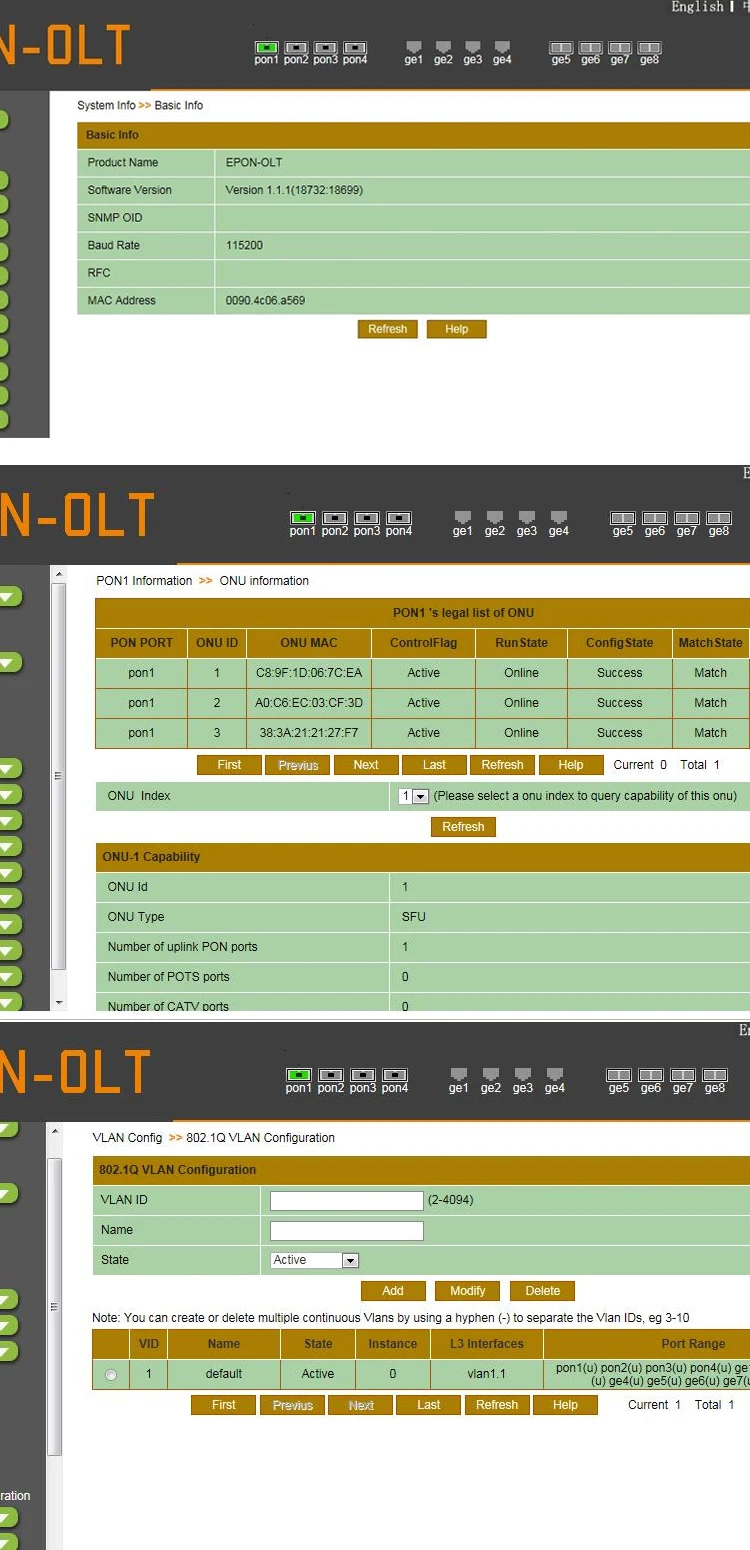

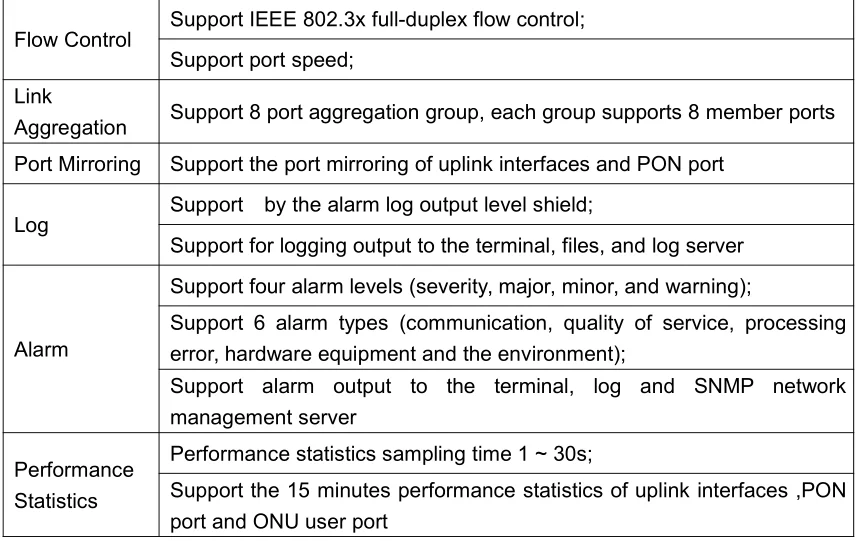

- Support Dynamic Bandwidth Allocation (DBA),the bandwidth granularity 64Kbps; - Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure; - Support 4096 VLAN additions, transparent transmission and conversion, support VLAN stacking (QinQ); - Support 32K MAC’s line speed learning and aging, support MAC address restriction; - Support IEEE 802.1d (STP), 802.1w (RSTP) Spanning Tree Protocol; - Support IGMP v1/v2 Snooping and Proxy, support CTC controllable multicast; - Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm; - Supports port speed, support packet filtering; - Support port mirroring and port trunking; - Provide logs, alarms and performance statistics; - Support WEB Management; - Support SNMP v1/v2c network.

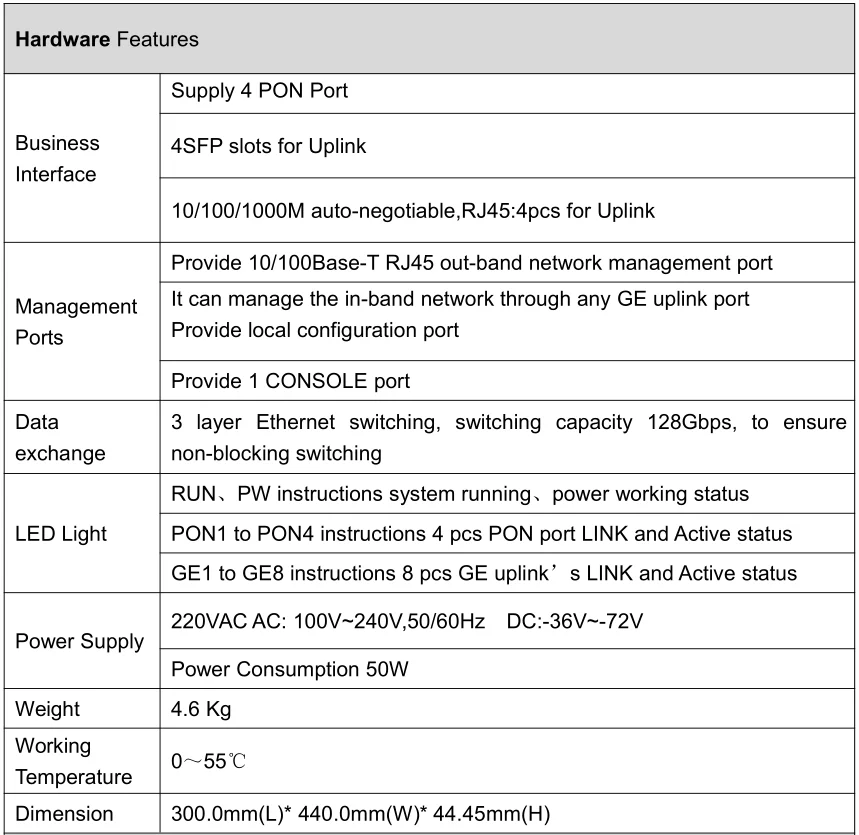

Business Interface
Supply 4 PON Port/4SFP slots for Uplink/10/100/1000M auto-negotiable,RJ45:4pcs for Uplink
Data exchange
3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching
Weight
4.6 Kg
Dimension
300.0mm(L)* 440.0mm(W)* 44.45mm(H)

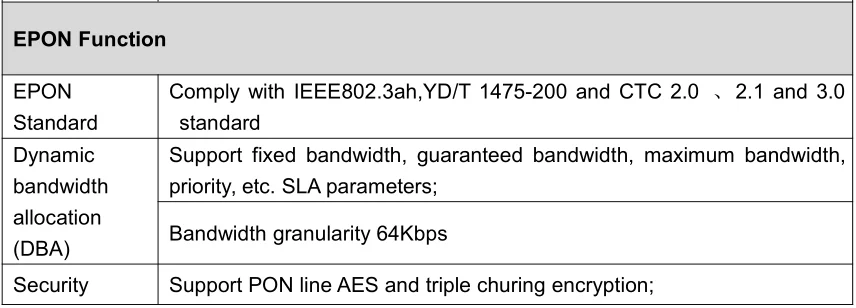

EPON Standard
Comply with IEEE802.3ah,YD/T 1475-200 and CTC 2.0 、2.1 and 3.0 standard
Security
Support PON line AES and triple churing encryption;

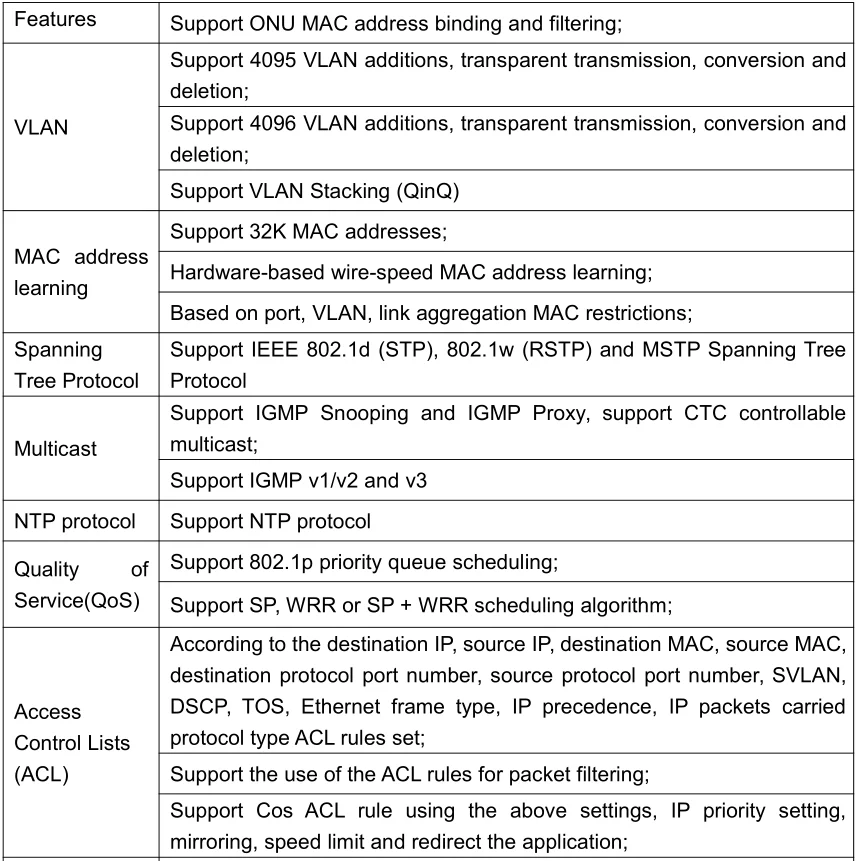

Features
Support ONU MAC address binding and filtering;
Spanning Tree Protocol
Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
Packing & Delivery

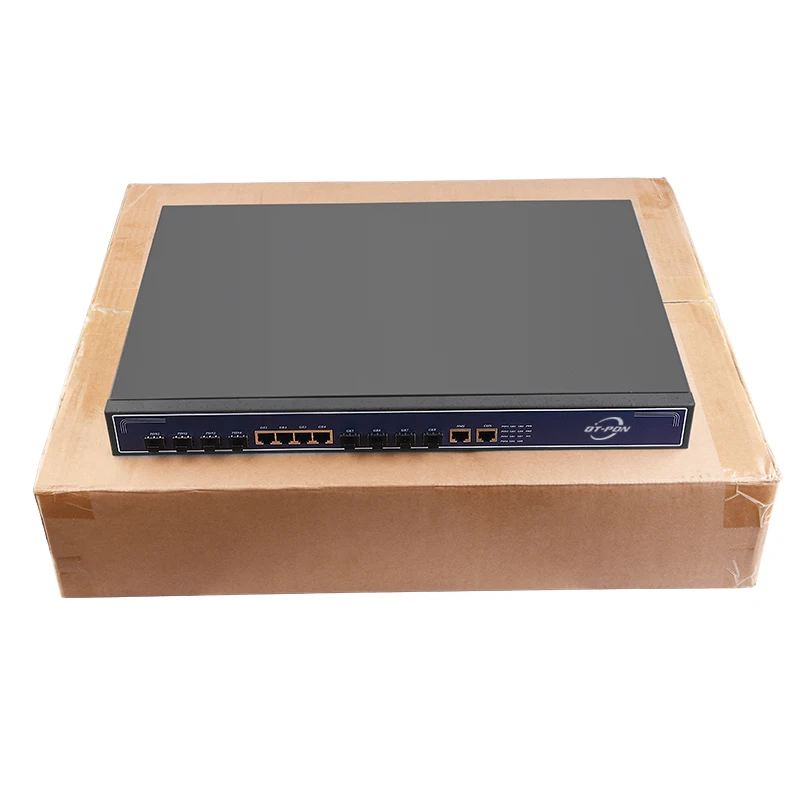

PACKING:
Original factory packing or customizedo,Or packed by standard export carton.

Shipping way:
By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.

Delivery time:
1-7 days after order confirmed, exact delivery date should be decided according to production season and order quantity.
Company Introduction
Shenzhen Baitong Putian Technology Co., Ltd is a professional supplier focusing on R&D and sales, specializing in devices of telecommunications of optical access network technology especially ONU and OLT, ONU has EPON, GPON, XPON and Dual band with CATV. It provides integrated network transmission products such as voice, data, and video based on IP networks.
We have provided advanced and cost-effective advanced services such as product-oriented development and OEM & ODM for many industry brands and large-scale projects at home and abroad. While creating advanced and superior products for users, we have also created huge brand values and markets for corporate customers. In addition, we have applied the certificates of ISO9001 and CE in 2019.
The sales of products in the international market covers the rest of the world and have been widely applied in the operator networks, enterprise networks and industry projects in over 30 countries, including South America, Africa, Eastern Europe, Southeast Asia, and the Asia Pacific region.
FAQ
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .

2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.

3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7
workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
